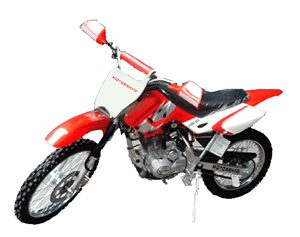

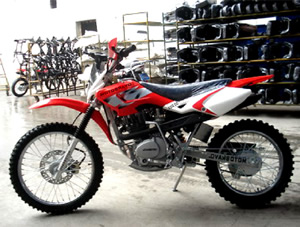

DB 200 GY

Product Description

SPECIFICATIONS：
POWER TRAIN:
Engine Type: 163FML, Single Cylinder, 4-Stroke, Air Cooling. Displacement (ml): 196.9. Bore X Stroke (mm): 63.5 X 62.2. Compression Ratio: 9.0:1. Max. Power (kw/r/min): 11.5/8000. Max. Torque (N.m/r/min): 14N.m/6000r/min. Lubrication: Pressed / Splash. Clutch Type: Manual. Ignition: C.D.I. Starting System: Electric / Kick Start. Transmission Sys.: Chain Drive.
DIMENSIONS:
L X W X H (mm): 1870 X 810 X 1070. Seat Height (mm): 800. Wheelbase (mm): 1265. Ground Clearance: 270mm. Max. Permissionable Weight (kg): 150. Dry Weight (kg): 88. Fuel Tank Capacity (L): 5.85.
CHASSIS:
Front Suspension: Telescopic Shock Absorber. Rear Suspension: Mono Shock Absorber. Front Brake: Hydraulic Disk. Rear Brake: Mechnical Drum. Front Tire: 2.75 - 21. Rear Tire: 4.10 - 18. Battery: 12N4T - 3A.
OTHER:
Packing Size (mm): 1660 X 465 X 780. Packing Weight (kg): 103. Container Loading: 48 units/20', 105 units/40'HQ.
