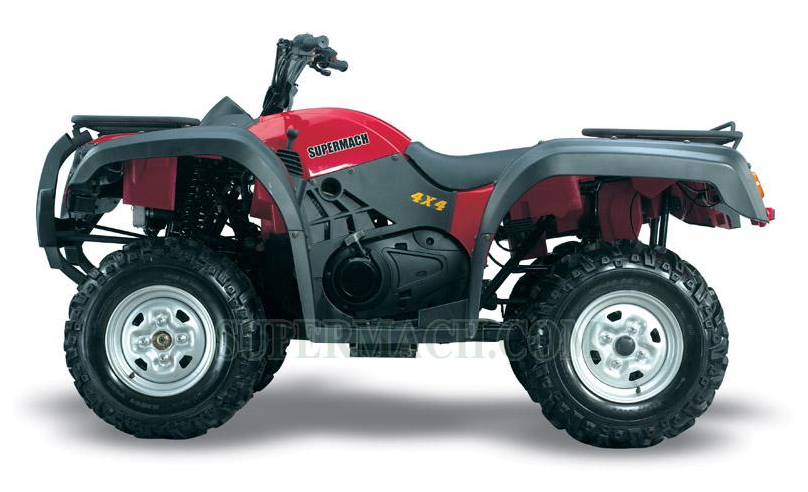

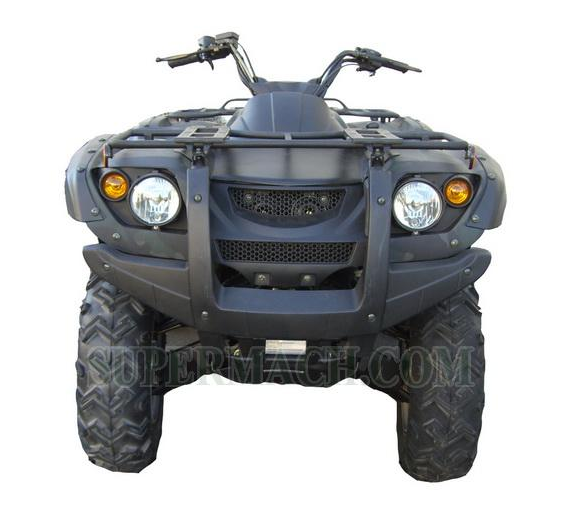

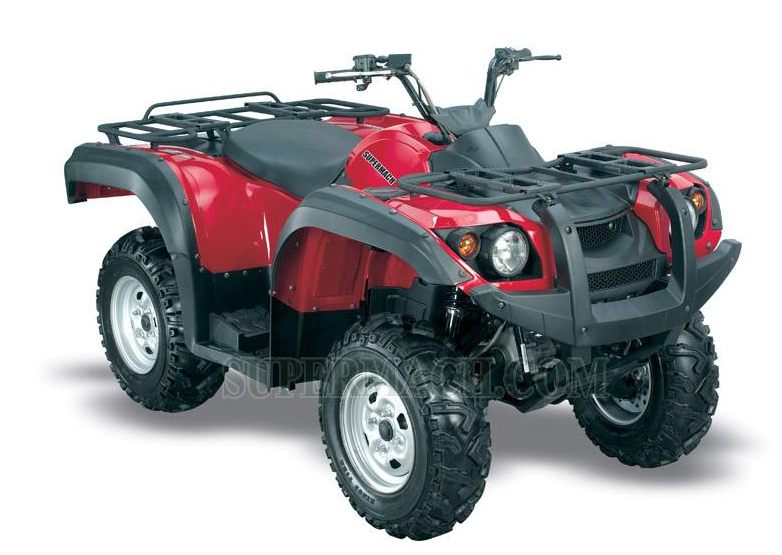

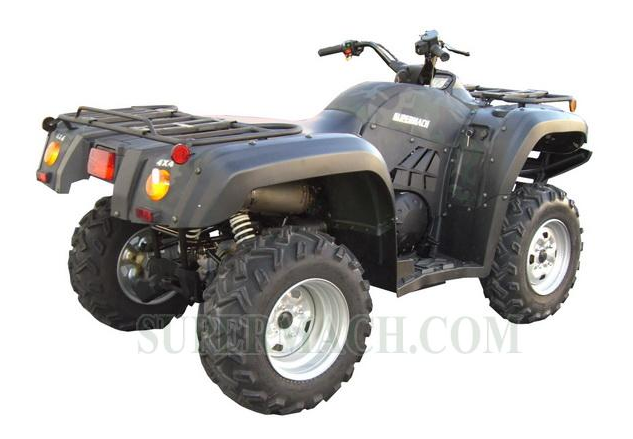

ATV 500

Product Description

SPECIFICATIONS：
Engine:
[Engine]: 471cc, Liquid cooled, 4-stroke, 1-cylinder. [Bore x Stroke]: 84.5 x 84mm. [Compression Ratio]: 9.4:1. [Max. Power]: 20hp/5000rpm. [Max Torque]: 27N.m/5000rpm. [Fuel Supply]: Carburetor PD33J-A. [Ignition]: CDI. [Starting]: Electric Start. [Drive Train]: Shaft (2WD, 4WD limited slip, 4WD Differential Lock).
Chassis:
[Suspension Front]: Independent double A-arm. [Suspension Rear]: Independent double A-arm. [Brakes/Front]: Dual ventilated hydraulic disc. [Brakes/Rear]: Dual ventilated hydraulic disc. [Tire Front]: AT25 x 8-12 radial. [Tire Rear]: AT25 x 10-12 radial.
Dimensions:
[LxWxH]: 87 x 51 ×50 (inches). [Seat Height]: 34 inches. [Wheelbase]: 54 inches. [Ground Clearance]: 10 inches. [Fuel Capatity]: 4.5 gal. [Dry Weight]: 683 lbs.
Other:
[Accessories]: Aluminum Wheels.
