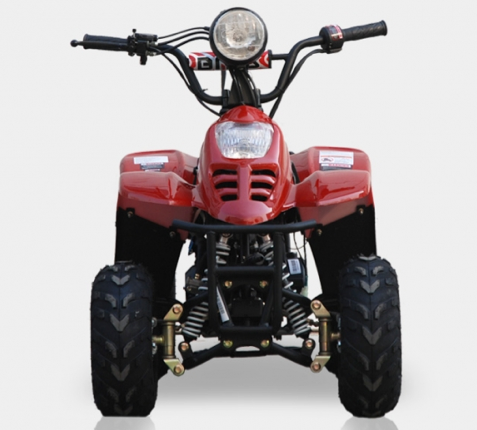

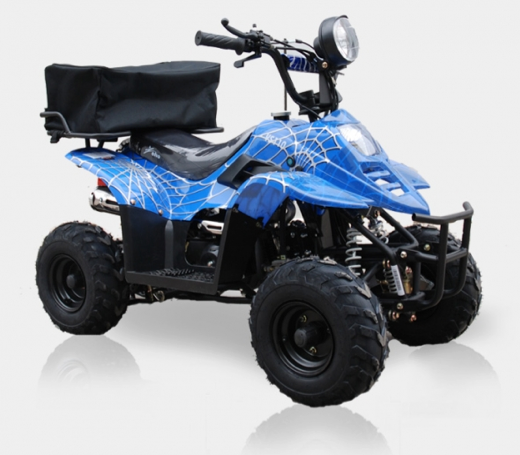

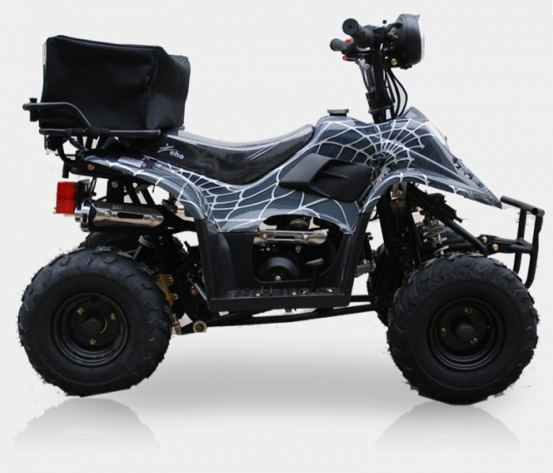

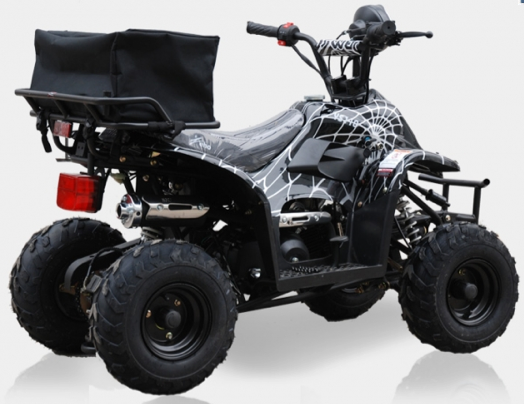

ATV 110 KLS

Product Description

Specifications:
Engine:
Engine Type: 152FMI / 107cc, 4 Stroke. Cooling System: air cooled. Bore X Stroke: 52.40 X 49.50 mm. Compression Ratio: 9.10 : 1. Horse Power: 7.50 HP. Max Torque: 6.20. Ignition Type: C.D.I. Starter System: Electric. Engine Oil: 15W/40-SE. Lubrication: Wet Sump. Transmission: Fully Automatic / Chain Drive.
Chassis:
Front Suspension: Double Spring coil. Rear Suspension: Mono Spring Coil. Front Tire: 145/70-6 / 6" Tire. Rear Tire: 145/70-6 / 6" Tire. Brake (front/rear): Front:Drum / Rear:Disc Brake.
Dimensions:
Overall L x W x H: 46.1 X 26.8 X 33.9 in. Seat Height: 24 in. Wheel Base: 32.28. Ground Clearance: 3.94 in. Rider Capacity: 1 person. Fuel Capacity: 0.53 gallons. Net Weight: 143 lbs. Gross Weight: 183 lbs.
Others:
Battery: 12V / 14 Ah. Package Size: 45.7 X 26.4 X 25.2 in. Age Restriction: 16 years or older. Max Quantity for 40HQ: 136. Climbing Ability: ≥ 20°.
